Project Description

The dock ramp is pit installed for warehouse loading dock applications. It is electric-hydraulic ramp and enable users loading cargoes or cargoes on pallet into containers fast and safely.

The stationary dock ramp is widely used in ware house. With the adjustable height, the dock ramp connects the trucks and warehouse like the bridge. The forklift or workers can load or unload cargoes quickly via ramps.

  • The power is electric-hydraulic, easy to operate.
  • Joint plate connects with main platform by 1pc shaft which is with high strength and smooth.
  • Platform is checkered plate with good anti-skip.
  • Protection panel will prevent someone or something into the ramp.
  • There are many supporting pipes at the back and bottom which can keep the shape and durable in using.
  • It is with support bar for internal maintenance for safety.
  • There is emergency stop and manual descending valve.
  • There are many pipes which can keep its shape after long time using.

The dock ramp includes standard models and customized models. The customized ones are according to capacity, platform size and other special applications.

Model

Platform size (mm)

Capacity

(t)

Closed height

(mm)

Adjusting range

(mm)

Power



DCQ-6

2100*2000

6

600

+300/-200

Electric-hydraulic

DCQ-8

2100*2000

8

600

+300/-200

Electric-hydraulic

DCQ-10

2100*2000

10

600

+300/-200

Electric-hydraulic

DCQ-12

2100*2000

12

600

+300/-200

Electric-hydraulic

DCQ-15

2100*2000

15

600

+300/-200

Electric-hydraulic

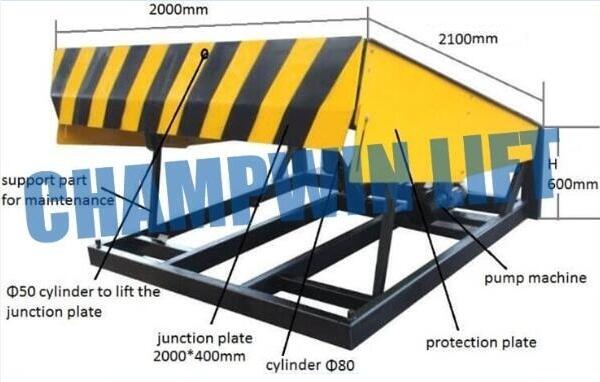

hydraulic dock ramp drawing
